WRM900
Product Overview
9″ Wide VGA Personal Rear-Seat Monitor
Key Highlights
- 9-inch Wide VGA (800×480) LCD display

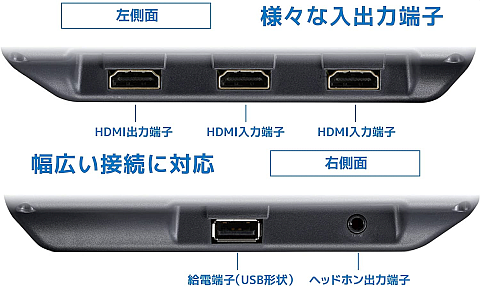

- HDMI (2 inputs, 1 output) and composite video input
- USB BC1.2 port (5V/2A) for charging smartphones/tablets
- Bluetooth audio + headphone jack support
- Can power two monitors from Nissan factory systems
- Designed for rear-seat entertainment in vehicles
Box Contents
- WRM900 9″ Wide VGA monitor
- Mounting hardware (headrest bracket, clamps)
- Composite video cable and 2 × HDMI cables
- Power cable for vehicle use (12V)
- Headphone cable & accessory cables
- Instruction manual
Model Comparison Table
| Feature | Included |
| 9″ Wide VGA Display | ◯ |
| Composite Video Input | ◯ |
| 2× HDMI Inputs | ◯ |
| 1× HDMI Output | ◯ |
| USB Charging Port | ◯ |
| Headphone & Bluetooth | ◯ |
| Dual-Monitor Pairing | ◯ |
| Rear-Seat Mount Hardware | ◯ |
Key Features
- High-Quality Display: 9″ TN LCD, 800×480 resolution, ideal for rear-seat viewing
- Flexible Video Inputs: composite and dual HDMI for multiple sources
- HDMI Loop-Out: share one source across two monitors
- USB Charging: BC1.2 output supplies 5V/2A, suitable for mobile devices
- Audio Options: headphone jack and Bluetooth audio
- Vehicle Compatibility: works with Nissan OEM video outputs via composite or HDMI
Installation & Usage

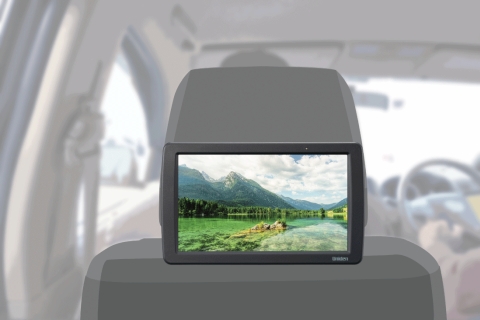

- Mounting: attach to headrest using supplied bracket and clamps
- Power Connection: hook to vehicle’s 12V DC system
- Video Setup: select composite or HDMI input; chain monitors via HDMI output
- Audio Usage: connect wired headphones or pair via Bluetooth
- Charging: use USB port to charge devices while in use
Specs Summary & Safety Notes
- Dimensions: 241.4 × 145.0 × 140.3 mm; Weight: approx. 1,150 g
- Power Supply: 12V DC, max 1.9A current
- Operating Temp: –10°C to +60°C
- Warranty: 1-year by Uniden Japan + 2-year/60,000 km by Nissan
